Between Series 67 GHz 0.9mm SuperMini to 1.85mm (V)

Model
185310-00SF
Gender

Female – Female

Frequency (GHz)

18, 27, 33, 36, 40, 50, 67

Mounting

Inline

Product Details

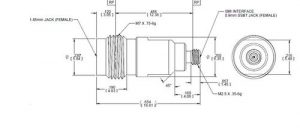

185310-00SF Diagram



Application

  • DC to 67.0 GHz High Performance

Features

  • Mode Free Through 67.0 GHz
  • Low VSWR
  • DC to 18.0 GHz……1.10:1 max
  • 18.0 to 40.0 GHz….1.15:1 max
  • 40.0 to 50.0 GHz….1.18:1 max
  • 50.0 to 67.0 GHz….1.25:1 max
  • Low Insertion Loss
  • Leakage: <-100dB
  • Temperature Rating -55ºC to + 165ºC

Interface

  • 1.85 mm: Per IEC-61169-32
  • 0.9 SuperMini: N/A

Construction

  • Housing: Beryllium Copper (BeCu) Gold Plated Per MIL-G-45204
  • Contact: Beryllium Copper (BeCu) Gold Plated Per MIL-G-45204
  • Center Contact Capture: Ultem 1000 Per ASTM D5205
